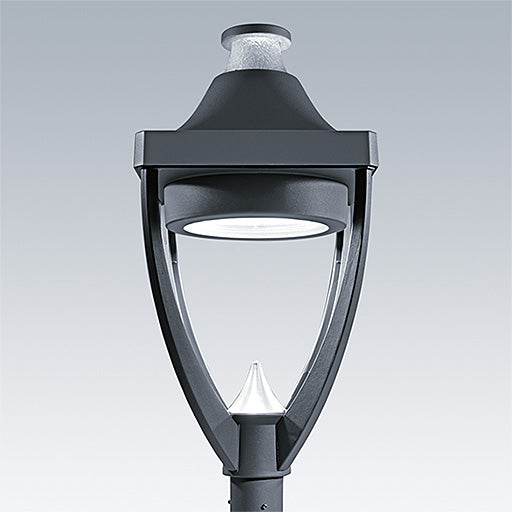

Legend A modern heritage post-top or suspended lantern upgraded with high performance light engines 3000K LED
- Beautiful aesthetics with the post top and suspended versions now almost identical for consistency
- Available with LEDs (3800/5000lm) for retrofits and more CPO versions
- Compatible with Bi power, DALI and Telea, providing advanced dimming and control to reduce energy consumption
- The post top lantern is now D60 as standard
Materials and Finish
Body: die-cast aluminium (EN AC-44300), powder coated grey 900 textured finish (cloase to RAL 7043)
Enclosure: flat toughened glass
Reflector: highly reflective anodised aluminium
Standard corrosion class C5 according to ISO 9223: 2012.
Installation and Mounting
Post-top mounted (MTP) version on shaft through 3xM8 stainless steel screws on poles with D60mm x 100mm spigot. Suspended (MSU) version fixed through with a 34G threaded tube. Recommended mounting heights: 4 to 6m.
