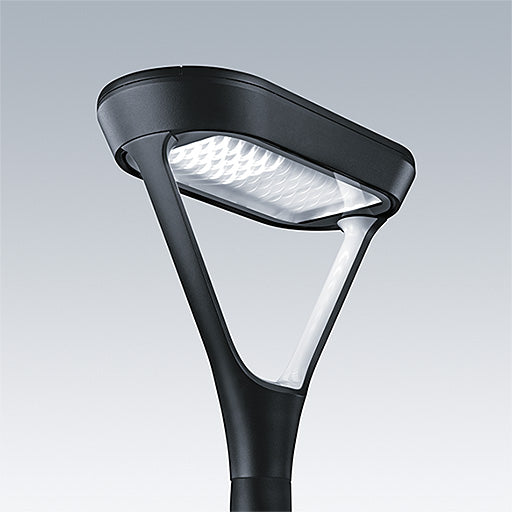

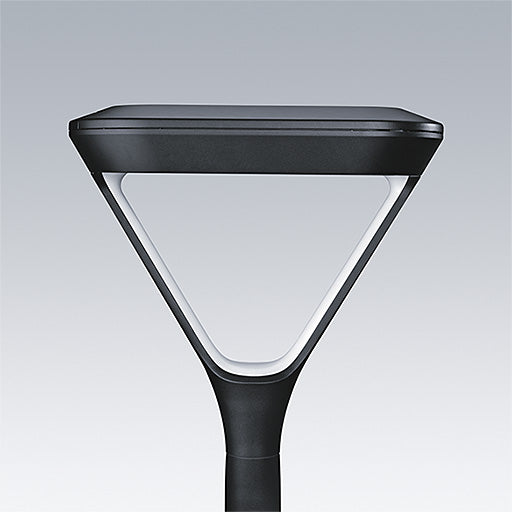

Urba Deco Smart, sophisticated architectural urban lighting
- Unique architectural shape with a sophisticated light signature
- A harmonious balance between performance and comfort
- A choice of 25 light distributions and five mounting options offer versatility in lighting projects
- Low weight and pre-wired for easy installation and tool-free maintenance
Materials and Finish
Canopy and base: die cast aluminium (AS9U3, LM24 equivalent MTP: EN AC-47100 ; MSU: EN AC-46000) sandy black close to RAL 9005
Glass: 6mm thick clear or prismatic glass
Arms: die cast aluminium sandy black close to RAL 9005, covered with a white or black shield in plastic ASA
Standard corrosion class: C3
Installation and Mounting

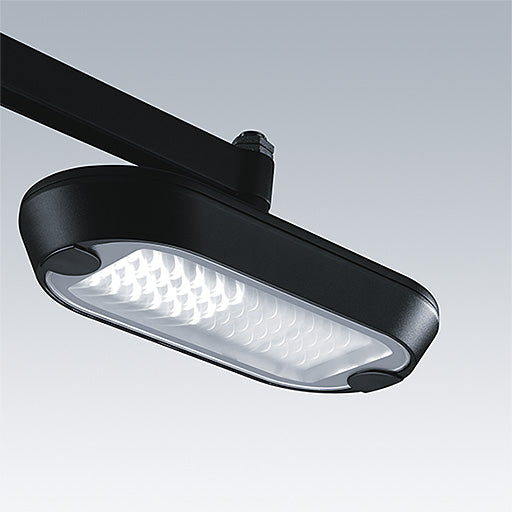

Suitable for post top, catenary, suspension and wall mounting. Recommended mounting height: post top 3 to 6m, suspended 3 to 8m, catenary 5 to 8m. Post Top: mounting on spigot/columns Ø60mm or Ø76mm: with 2 screws (Allen 4). Maintenance with access from above. Pre-wired versions (6m), supplied complete and ready to install, in a single box. Catenary and suspension: fixing through 34G, maintenance with access from below. Dedicated columns and brackets available.
